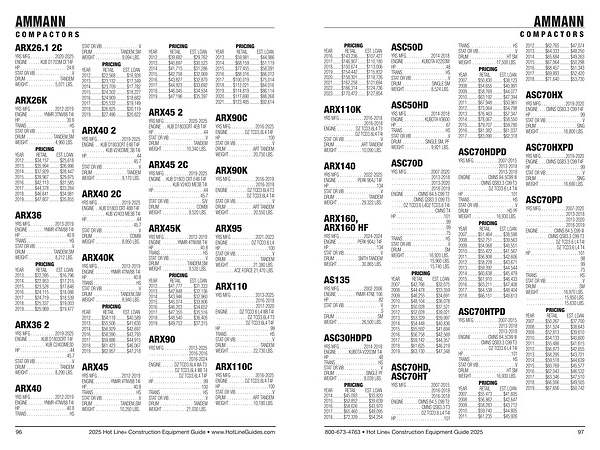

Hot Line Construction Equipment Guide 2025 | Page 96

ARX26.1 2C

YRS MFG.......... 2020-2025 ENGINE..... KUB D1703M DI T4F HP..................... 24.8 STAT OR VIB................ V DRUM............... TANDEM WEIGHT............ 5,071 LBS.

ARX26K

YRS MFG.......... 2012-2019 ENGINE...... YNMR 3TNV88 T4I HP..................... 30.6 TRANS................... HS STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT............ 4,960 LBS.

PRICING YEAR RETAIL EST. LOAN 2012..........$ 34,157.......... $ 25,618 2013..........$ 35,994.......... $ 26,996 2014..........$ 37,929.......... $ 28,447 2015..........$ 39,967.......... $ 29,975 2016..........$ 42,113.......... $ 31,585 2017..........$ 44,378.......... $ 33,284 2018..........$ 46,641.......... $ 34,981 2019..........$ 47,807.......... $ 35,855

ARX36

YRS MFG.......... 2013-2019 ENGINE...... YNMR 4TNV88 T4I HP..................... 40.8 TRANS................... HS STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT............ 8,212 LBS.

PRICING YEAR RETAIL EST. LOAN 2013..........$ 22,395.......... $ 16,796 2014..........$ 22,953.......... $ 17,215 2015..........$ 23,528.......... $ 17,646 2016..........$ 24,115.......... $ 18,086 2017..........$ 24,719.......... $ 18,539 2018..........$ 25,337.......... $ 19,003 2019..........$ 25,969.......... $ 19,477

ARX36 2

YRS MFG.......... 2019-2025 ENGINE..... KUB D1803CRT T4F............. KUB C2403ME3D HP...................... 44....................... 45.7 STAT OR VIB................ V DRUM............... TANDEM WEIGHT............ 8,290 LBS.

ARX40

YRS MFG.......... 2012-2019 ENGINE...... YNMR 4TNV88 T4I HP..................... 40.8 TRANS................... HS

STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT............ 9,094 LBS. PRICING YEAR RETAIL EST. LOAN 2012..........$ 22,568.......... $ 16,926 2013..........$ 23,132.......... $ 17,349 2014..........$ 23,709.......... $ 17,782 2015..........$ 24,302.......... $ 18,227 2016..........$ 24,909.......... $ 18,682 2017..........$ 25,532.......... $ 19,149 2018..........$ 26,825.......... $ 20,119 2019..........$ 27,496.......... $ 20,622

ARX40 2

YRS MFG.......... 2019-2025 ENGINE.. KUB D1803CRT E4B T4F.......... KUB V2403ME 3B T4I HP...................... 44....................... 45.7 STAT OR VIB................ V DRUM............... TANDEM WEIGHT............ 9,170 LBS.

ARX40 2C

YRS MFG.......... 2019-2025 ENGINE. KUB D1803 CRT 48B T4F.......... KUB V2403 ME3B T4I HP...................... 44....................... 45.7 STAT OR VIB................ V DRUM................ COMBI WEIGHT............ 8,950 LBS.

ARX40K

YRS MFG.......... 2012-2019 ENGINE...... YNMR 4TNV88 T4I HP..................... 40.8 TRANS................... HS STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT............ 8,940 LBS.

PRICING YEAR RETAIL EST. LOAN 2012..........$ 54,118.......... $ 40,589 2013..........$ 55,506.......... $ 41,630 2014..........$ 56,929.......... $ 42,697 2016..........$ 58,390.......... $ 43,793 2017..........$ 59,886.......... $ 44,915 2018..........$ 61,423.......... $ 46,067 2019..........$ 62,957.......... $ 47,218

ARX45

YRS MFG.......... 2012-2019 ENGINE...... YNMR 4TNV88 T4I HP..................... 40.8 TRANS................... HS STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT........... 10,250 LBS.

PRICING YEAR RETAIL EST. LOAN 2012..........$ 39,682.......... $ 29,762 2013..........$ 40,697.......... $ 30,523 2014..........$ 41,715.......... $ 31,286 2015..........$ 42,758.......... $ 32,069 2016..........$ 43,827.......... $ 32,870 2017..........$ 44,923.......... $ 33,692 2018..........$ 46,045.......... $ 34,534 2019..........$ 47,196.......... $ 35,397

ARX45 2

YRS MFG.......... 2020-2025 ENGINE.. KUB D1803CRT 4EB T4F HP...................... 44 STAT OR VIB................ V DRUM............... TANDEM WEIGHT........... 10,340 LBS.

ARX45 2C

YRS MFG.......... 2019-2025 ENGINE. KUB D1803 CRT E4B T4F.......... KUB V2403 ME3B T4I HP...................... 44....................... 45.7 STAT OR VIB............... S / V DRUM................ COMBI WEIGHT............ 9,520 LBS.

ARX45K

YRS MFG.......... 2012-2019 ENGINE...... YNMR 4TNV88 T4I HP..................... 40.8 TRANS................... HS STAT OR VIB................ V DRUM............ TANDEM, SM WEIGHT............ 9,535 LBS. PRICING YEAR RETAIL EST. LOAN 2012..........$ 41,777.......... $ 31,333 2013..........$ 42,848.......... $ 32,136 2014..........$ 43,946.......... $ 32,960 2015..........$ 45,074.......... $ 33,806 2016..........$ 46,203.......... $ 34,652 2017..........$ 47,355.......... $ 35,516 2018..........$ 48,540.......... $ 36,405 2019..........$ 49,753.......... $ 37,315

ARX90

YRS MFG.......... 2013-2025.................. 2016-2016.................. 2016-2024 ENGINE..... DZ TCD3.6L4 IIIA T3........... DZ TCD3.6L4 IIIB T4............. DZ TCD3.6L4 T4F HP...................... 99........................ 100 TRANS................... HS STAT OR VIB................ V DRUM............... TANDEM WEIGHT........... 21,030 LBS.

PRICING YEAR RETAIL EST. LOAN 2013..........$ 59,981.......... $ 44,986 2014..........$ 68,159.......... $ 51,119 2015..........$ 77,455.......... $ 58,091 2016..........$ 88,016.......... $ 66,012 2017........$ 100,019.......... $ 75,014 2018........$ 112,021.......... $ 84,016 2019........$ 114,819.......... $ 86,114 2020........$ 117,690.......... $ 88,268 2021........$ 123,485.......... $ 92,614

ARX90C

YRS MFG.......... 2016-2025 ENGINE....... DZ TCD3.6L4 T4F HP..................... 100 STAT OR VIB................ V DRUM........... ART TANDEM WEIGHT........... 20,750 LBS.

ARX90K

YRS MFG.......... 2016-2019.................. 2016-2018 ENGINE........ DZ TCD3.6L4 T3.............. DZ TCD3.6L4 T4I STAT OR VIB................ V DRUM........... ART TANDEM WEIGHT........... 20,550 LBS.

ARX95

YRS MFG.......... 2021-2023 ENGINE.......... DZ TCD3.6 L4 HP..................... 100 STAT OR VIB................ V DRUM............... TANDEM WEIGHT........... 21,380 LBS......... ACE FORCE 21,470 LBS.

ARX110

YRS MFG.......... 2013-2025.................. 2016-2018.................. 2017-2020 ENGINE.... DZ TCD3.6 L4 IIIB T4I.............. DZ TCD3.6L4 T3............. DZ TCD3.6L4 T4F HP...................... 99 TRANS................... HS STAT OR VIB................ V DRUM............... TANDEM WEIGHT........... 22,730 LBS.

ARX110C

YRS MFG.......... 2016-2025 ENGINE....... DZ TCD3.6L4 T4F HP..................... 100 STAT OR VIB................ V DRUM........... ART TANDEM WEIGHT........... 10,180 LBS.

96 2025 Hot Line ® Construction Equipment Guide • www. HotLineGuides. com
