Ground Conditions Are the Most Important Factor
“ Knowing the exact ground bearing capacity( GBC), which is the amount that ground can hold before collapsing, or the approximate GBC based on the soil type, is crucial,” Steiner related.“ For example, equipment set up on concrete will affect the ground much differently than on undeveloped soil. Even though the same vehicle is being used, different padding will be required to meet the necessary broadcasting of weight to prevent the outriggers from sinking into the ground and causing equipment failure.
“ Ground conditions will signal if you need a larger pad or additional padding, cribbing or blocking,” Steiner added.“ But simply increasing the length and width of a pad will not

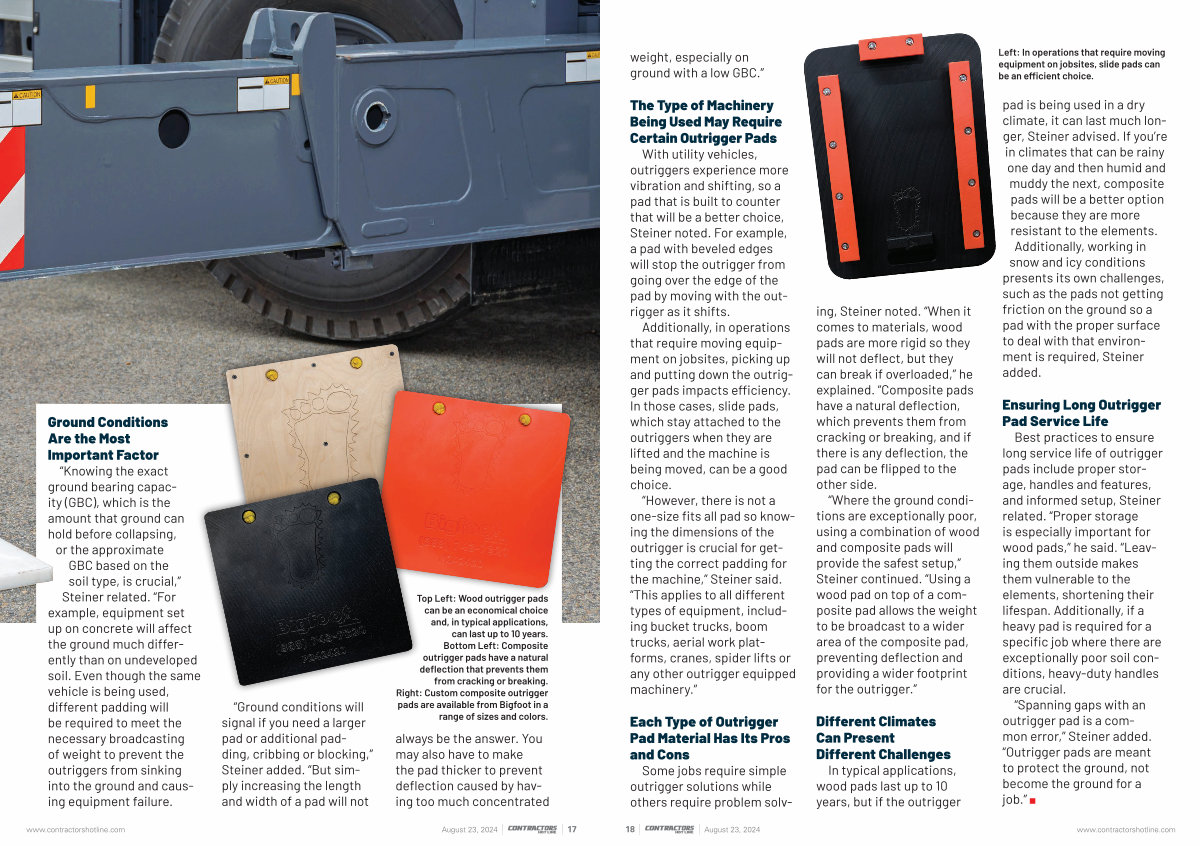

Top Left: Wood outrigger pads can be an economical choice and, in typical applications, can last up to 10 years.
Bottom Left: Composite outrigger pads have a natural deflection that prevents them from cracking or breaking. Right: Custom composite outrigger pads are available from Bigfoot in a range of sizes and colors.
always be the answer. You may also have to make the pad thicker to prevent deflection caused by having too much concentrated
